Beyond Dimensions: The 'Heartbeat' of Temperature & Pressure

Shift from 'post-inspection' to 'process control'. Real-time monitoring of KCCs like mold temp, injection pressure, and tonnage to prevent hidden defects and scrap.

monitoringMonitoring deployed_codeMulti-Cavity Insight constructionPredictive Maintenance timelineAuto-Lag Correlation
Pressure / Temp · Monitor

Industry Pain Points

"Dimensions are within spec, so why the cracking complaints? 32 cavities per shot—which one is blocked?"
hourglass_empty

Lagging Results, Hidden Defects

Internal stress and short shots are often undetectable by dimension checks. By the time parts cool for measurement, thousands of shots are already produced.

view_module

The Multi-Cavity Consistency Black Hole

16 or 64 cavities per shot. Mixed sampling Cpk looks fine, but Cavity #7 is blocked and #12 has flash. Traditional SPC fails to pinpoint the 'bad cavity'.

handyman

Mold Maintenance by 'Guesswork'

When to repair stamping dies? Usually waiting until Burrs exceed limits, meaning the die is already over-worn and lifespan compromised.

NEXSPC Core Scenarios & Solutions

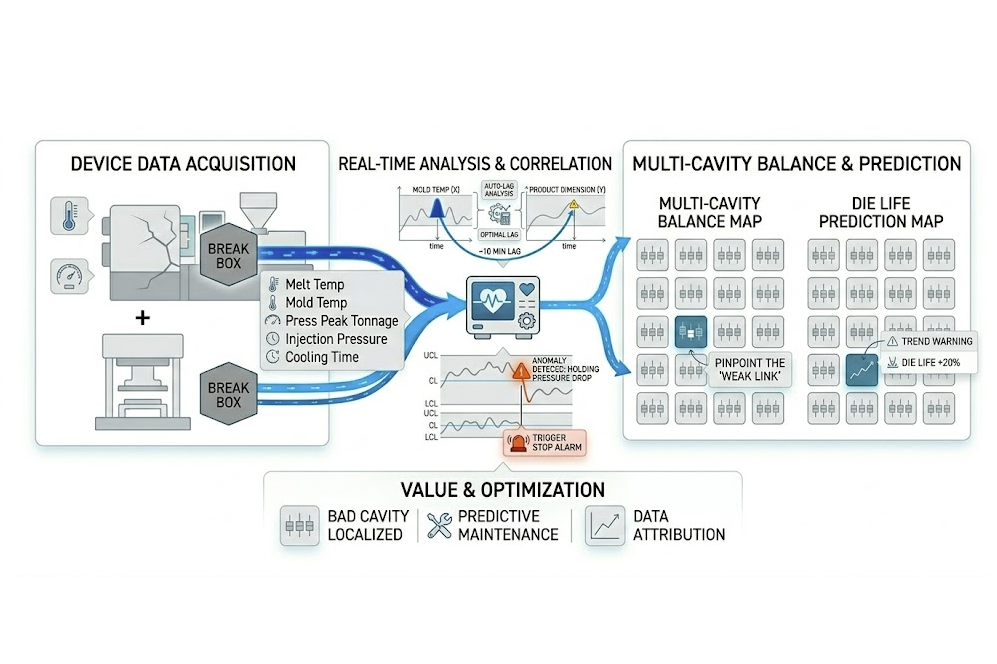

Break the Black Box: First 'visualize' process parameters, then 'separate' multi-cavities, and finally 'calculate' maintenance & attribution accurately.

OPC UA Real-time 'ECG' of Key Control Characteristics (KCC)

Real-time 'ECG' of Key Control Characteristics (KCC)

Real Time

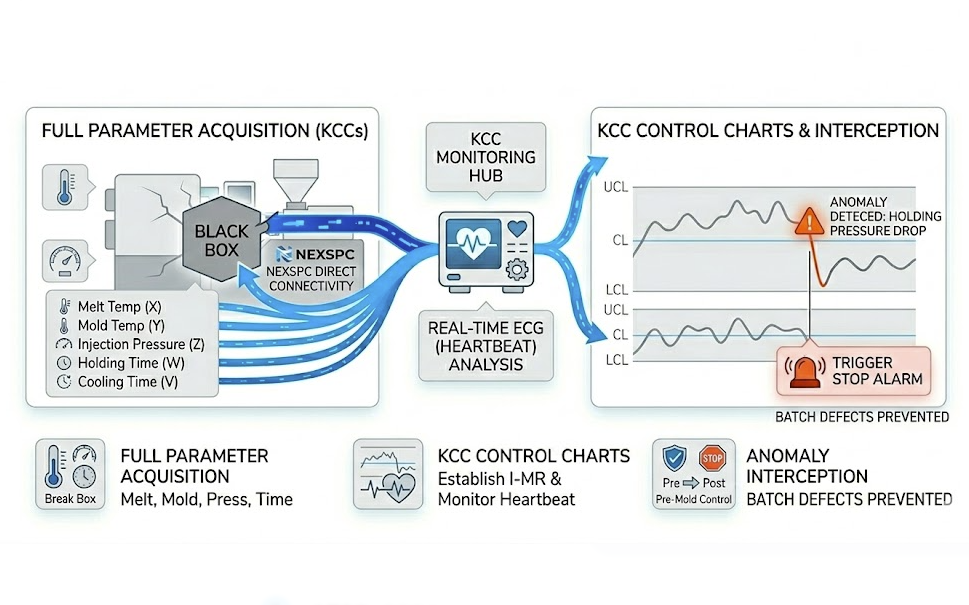

Know if the product is 'healthy' before it's even molded. Use NEXSPC's direct connectivity to break the injection molding machine's black box.

  • Full Parameter Acquisition:Melt temp, mold temp, injection pressure, holding time, cooling time, etc.

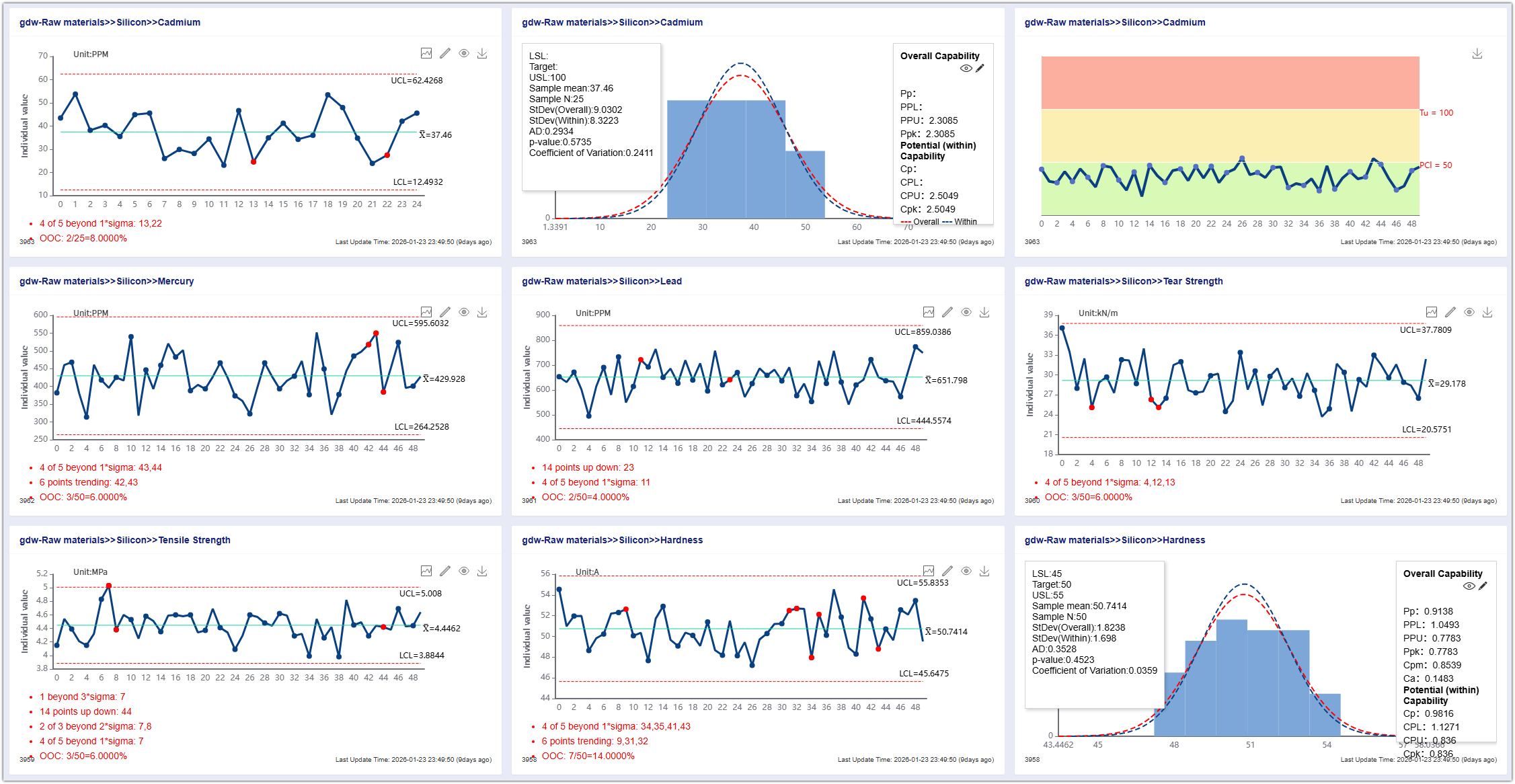

  • KCC Control Charts:Establish I-MR charts for KCCs to monitor the process 'heartbeat'.
  • Anomaly Interception:Holding pressure drop (risk of shrinkage) triggers immediate stop alarm to prevent batch defects.
Value: Shift from 'Post-Event Detection' to 'Pre-Molding' Process Control.
Box Plot Multi-Cavity Balance Perspective

Multi-Cavity Balance Perspective

Compare

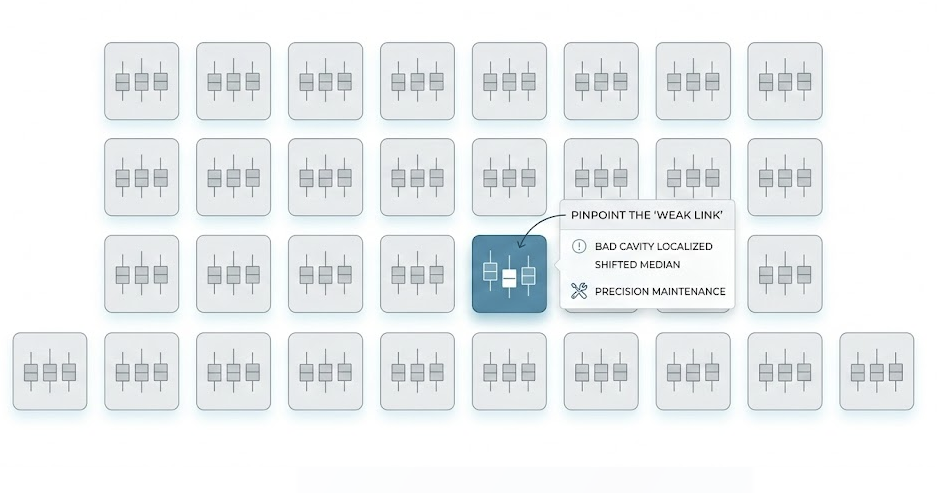

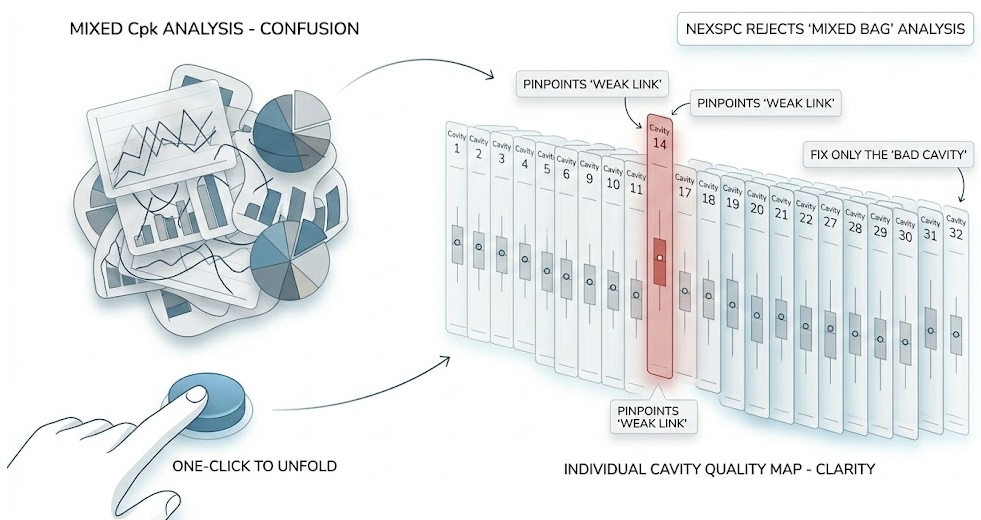

One-click to unfold the quality map of 32 cavities, pinpointing the 'weak link'. NEXSPC rejects 'mixed bag' analysis that hides individual defects.

  • Grouped Boxplot:Side-by-side display of all cavities. Intuitively spot median shifts or variance anomalies in specific cavities.
  • Mold Fingerprint:Long-term tracking of per-cavity consistency for every mold, building a mold health archive.
  • Precision Maintenance:Fix only the 'bad cavity'. Increase efficiency and reduce blind mold disassembly.
Value: Bad cavities can no longer hide in 'Mixed Cpk'. Localization speed is drastically improved.
Trend Rules Stamping Tonnage Monitoring & Die Life Prediction

Stamping Tonnage Monitoring & Die Life Prediction

trend

Data tells you: 'Regrind in 5,000 hits'. Mold wear is gradual; SPC captures these weak signals.

  • Tonnage Monitoring:Real-time acquisition of Press Peak Tonnage.
  • Trend Warning:Enable rules like '7 points rising/falling' to push maintenance advice in advance.
  • Predictive Maintenance:Shift from 'Breakdown Maintenance' to Predictive Maintenance, extending die life.
Value: Early Regrind = Die Life +20%. Simultaneous reduction in downtime and scrap.
Auto-Lag 'Lag' Correlation between Process Parameters & Quality

'Lag' Correlation between Process Parameters & Quality

auto-lag

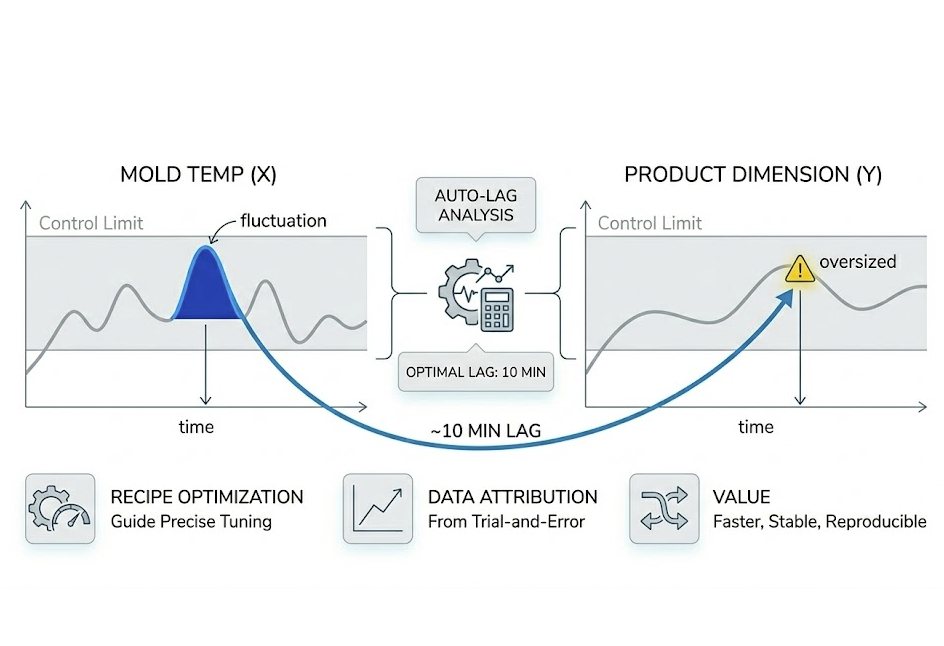

Trace effect back to cause to optimize the process recipe. Oversized dimensions might be due to mold temp fluctuation 10 minutes ago.

  • Auto-Lag:Automatically analyze 'Mold Temp (X)' vs 'Product Dimension (Y)' and calculate the best lag time.
  • Recipe Optimization:Lock onto sensitive parameters (Temp/Pressure) to guide process engineers in precise tuning.
Value: Upgrade from 'Trial-and-Error Tuning' to 'Data Attribution'. Faster, more stable, and reproducible.

Customer Value Comparison (Before & After)

From monitoring targets to mold maintenance and attribution: turning 'black box processes' into 'explainable processes'.

Dimension Traditional QC Mode NEXSPC Injection/Stamping Ed.
Monitoring Target Check only product dimensions (KPC); post-event gating. Monitor process parameters (KCC) on same screen; Process Control.
Multi-Cavity Mgmt Mixed sampling; bad cavities are hard to detect. Grouped boxplots; 32-cavity status at a glance.
Mold Maintenance Repair only after scrap is produced; high mold damage. Trend warnings for early repair; Mold Life +20%.
Problem Attribution Trial-and-error tuning; sometimes making it worse. Big Data Regression + Auto-Lag; pinpoint causal parameters.
